SyLMAND - Synchrotron Laboratory for Micro And Nano Devices

SyLMAND consists of a dedicated x-ray lithography beamline and pre- and post-processing laboratories in a cleanroom environment.

Spectral Range

1 - 15 keV

Techniques

Microfabrication

  • Deep X-ray lithography
  • LIGA process lithography steps

Samples

The standard mask layout area is 75mm in diameter.

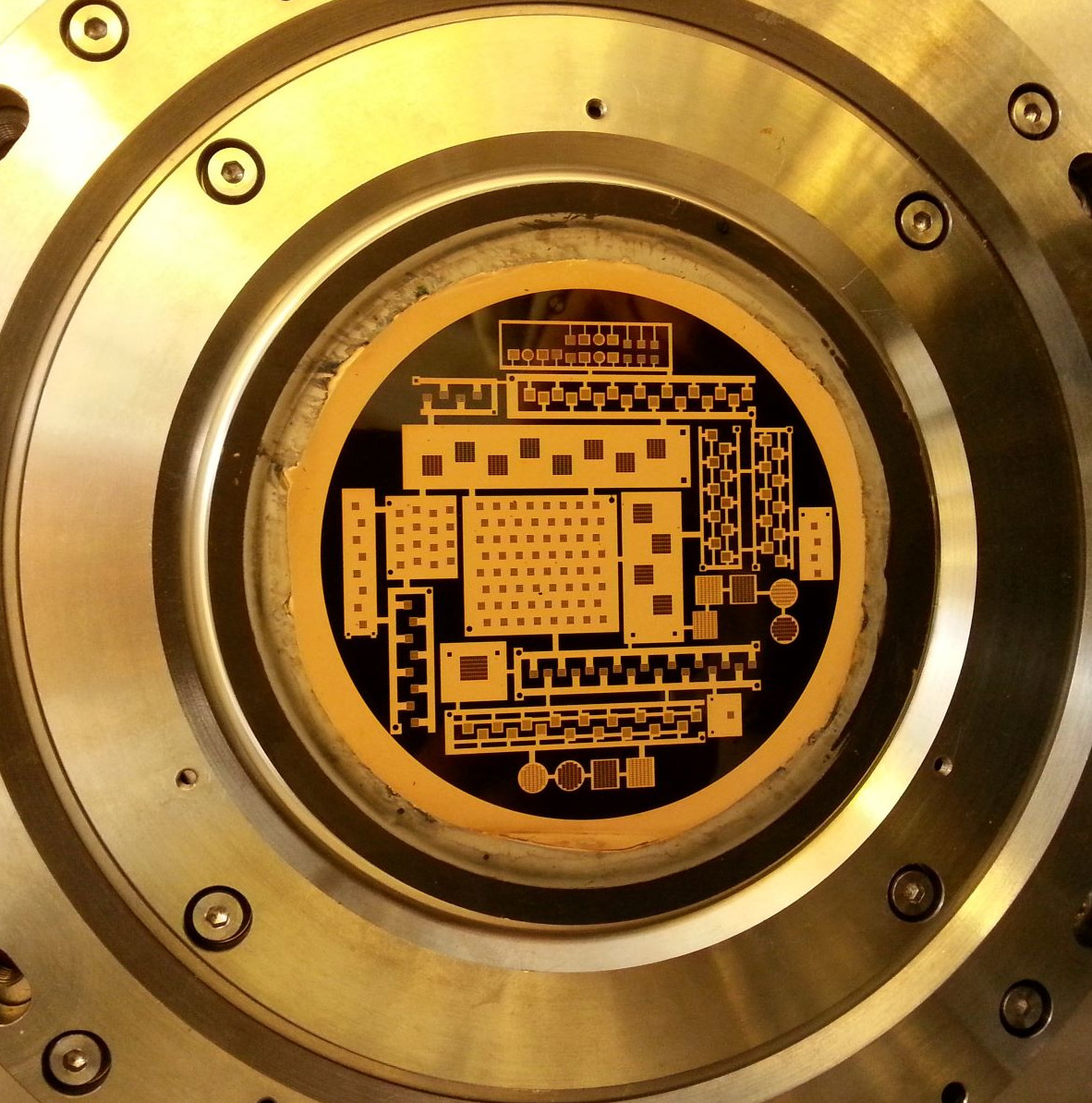

Masks required in the XRL process can be fabricated based on user CAD layouts utilizing SyLMAND’s in-house mask making technology. Alternatively, a wide variety of user-owned XRL masks can be applied at SyLMAND.


Specifications

CLS Port 05B2-1
Polymer Poly methyl methacrylate (PMMA) (Molecular weight = 1.6M )
Minimum Feature size Dependent on design and polymer thickness
Polymer Thickness 100 μm to 1 mm
Clean Room Capabilities
  • Titanium seed layer application on substrate by sputtering
  • PMMA application and customization of thickness
  • Post-exposure development
  • Inspection and imaging capabilities (optical and scanning electron microscopes with measurement tools)
  • Metrology (Surface profiling and Z-tip)
  • UV primary mask patterning and stand alone UV lithography

Contacts

Tyler Morhart Associate Scientist, Beamline Responsible (SyLMAND)

David Klymyshyn SyLMAND Beamline Advisory Team Leader
Sven Achenbach SyLMAND Beamline Advisory Team Leader

Visit the SyLMAND website for a full list of beamline contacts.

Full Contact List

Garth Wells, Sven Achenbach, David Klymyshyn
L-R: Garth Wells, Sven, and David

Beamline Video

Learn all about our Synchrotron Laboratory for Micro And Nano Devices (SyLMAND) beamline from Tyler Morhart, associate scientist and beamline responsible.
